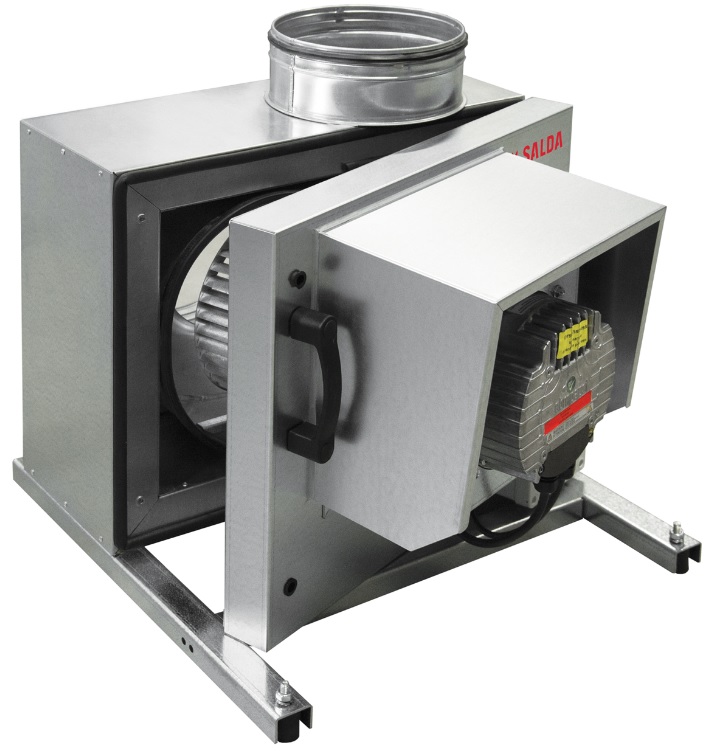

KF-T120 B 315 EC, air exhaust fan box

Prod. No.: 84312706
https://www.koudhe.com/web/image/product.template/8046/image_1920?unique=741f9cf

Capacity approx. 1400 m³/h at 200Pa; 230V-1Ph-50 Hz; I nom. 1.2 A; connection diameter 315 mm
Kitchen fan designed to extract hot air (up to 120°C) containing water vapour and impurities such as grease in food processing companies
Equipped with a highly efficient EC motor and an impeller with backward curved blades
The high motor protection class allows the fan to be installed outdoors
Integrated motor protection
Galvanised steel housing
Acoustic wall insulation: 50 mm
Stainless steel drip tray
Control via an external 0-10V fan speed controller MTP010 or potentiometer, or as a slave exhaust fan in combination with the VEKA INT EKO for air supply

    This combination does not exist.

    ~ 2 weeks

    * This product can't be returned.

    The sale of this product is subject to our terms and conditions .
    * Images and prices are indicative. You will receive final prices by order confirmation.

    Specifications

    Type Value
    Voltage (V) 230
