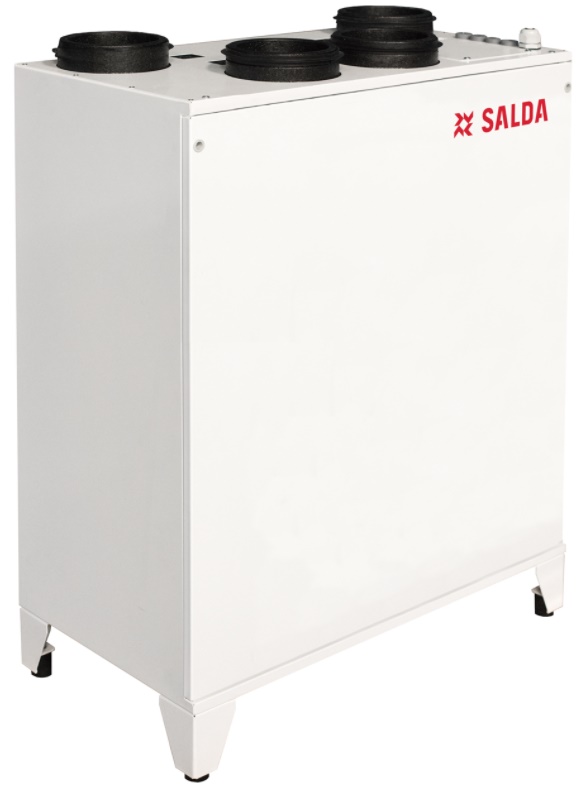

SMARTY 3X V 1.1, compact heat recovery unit for residential buildings
Prod. No.: 84314043
Approx. 380 m³/h at 150 Pa. Thanks to its compact dimensions (599 x 538 x 810 mm), space is saved for other equipment by mounting it on top of standard household appliances such as washing machines. Floor mounting is also possible (mounting feet available as an optional accessory).
Efficient counterflow heat exchanger – 89%.
Low energy consumption – SPI only 0.272 W/(m³/h).
Equipped with bypass valve and integrated electric preheater (optional: electric duct reheater).
Smarty 3XV is available in two versions: Smarty 3XV 1.1 and Smarty 3XV 1.2. Version 1.1 is equipped with a 1.1 kW electric preheater. Version 1.2 is equipped with a 2.2 kW electric preheater. duct reheater)
Smarty 3XV is available in 2 versions: Smarty 3XV 1.1 and Smarty 3XV 1.2. Version 1.1 is equipped with a built-in preheating coil and RH sensor. In addition, pressure switches are installed on the 1.1 version for operating modes with constant air flow/air pressure.
