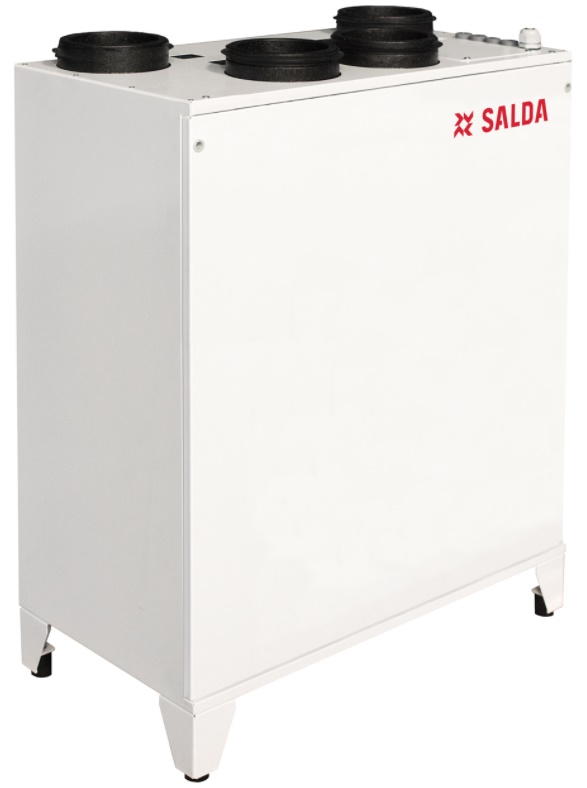

SMARTY 4X V F2 1.2, compact heat recovery unit for residential buildings
Prod. No.: 84314058
Approx. 525 m³/h at 200 Pa
Thanks to its compact dimensions (599 x 538 x 810 mm), space is saved for other appliances by mounting it on top of standard household appliances such as washing machines. Floor mounting is also possible (mounting feet available as an optional accessory).
Efficient counterflow heat exchanger – 83.1%.
Low energy consumption – SPI only 0.357 W/(m³/h).
Equipped with bypass valve (Option: electric duct pre- or post-heater)
Smarty 4XV is available in 2 versions: Smarty 4XV 1.1 and Smarty 4XV 1.2. Version 1.1 is equipped with an integrated preheating coil and RV sensor. In addition, pressure switches are installed on the 1.1 version for operating modes with constant air flow/air pressure.
